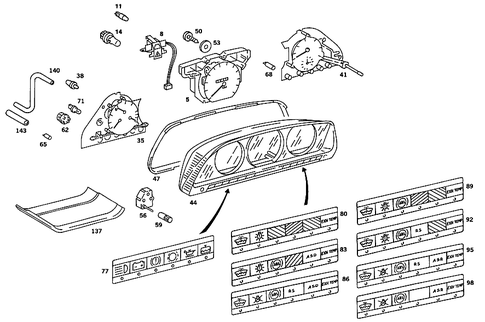

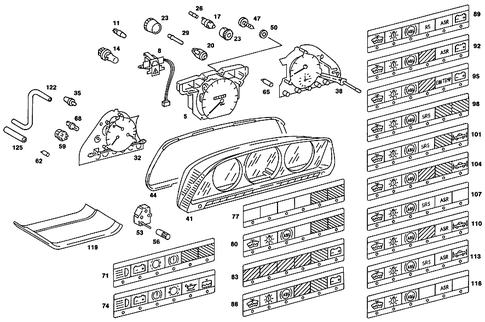

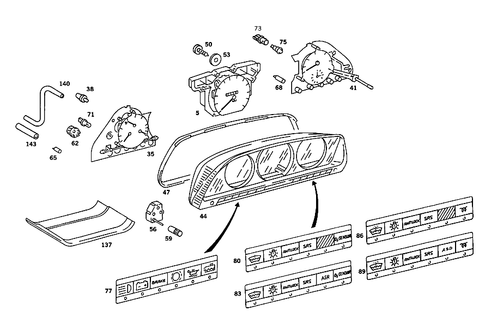

Instrument Cluster for 1986 Mercedes-Benz 560SEL
No.
Part # / Description / Price
Price
5
5
Speedometer
Mercedes-Benz
Mercedes-Benz Notes: ON VEHICLES WITH ASR/ASD/4-MATIC MODIFY TRACTION WARNING INDICATOR;SEE ALSO ITZ P 010 DD.08/91
Description: 260 km.
5
8
35
38
Fuse Link Mercedes-Benz
Mercedes-Benz Notes: PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
Description: Instrument cluster.
50
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Air-blast nozzle to heater casediameter: 3,5mmthread code letter: c. (water deflector) on front panel pillardiameter: 3,5mmthread code letter: c. ATTACHMENT, GRIDDiameter: 3,5mmThread code letter: C. ASHTRAY TO HOUSING 3.5X13Diameter: 3,5mmThread code lett ...
$1.50
$1.50
62
Socket Mercedes-Benz
Mercedes-Benz Description: Charge control,instrument cluster lighting. Tell-tale lamp.
$13.00
$13.00
71
Bulb Mercedes-Benz
Mercedes-Benz Description: Charge control lamp used for second alternator w5/1,2-12v 1,2w. 12v-1.2wmodel 1: w5/1,2wvolt: 12vwatt: 1,2w. Cigar lighter. 12v-1.2wmodel 1: w5/1,2wvolt: 12vwatt: 1,2w. Three-hole mounting w5/1,2-12v 1,2w. 12v-1.2wmodel 1: w5/1,2wvolt: 12vwatt: 1,2w. J-12V ...
$46.00
$46.00
98
Ledge Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Only with anti-lock braking system. Right.
116
Ledge Mercedes-Benz
Mercedes-Benz Description: Only wi/anti-lock braking system and air bag. Right;only with air bag.
119
125
Ledge Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Only used with abs,airbag and asr, right. Only used wiht ,airbag and asr, right.
128
Ledge Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Only used with abs,hydropneumatic suspension and asr, right.
131
Ledge Mercedes-Benz
Mercedes-Benz Description: Only used with abs,hydropneumatis suspension,airbag and asr, right.
134
Ledge Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Only used abs & asr, right. Only used wiht asr, right.
137
Cover Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: Instrument cluster 440 mm. Panelling to front panel pillar 540 mm. For covering 1220 mm.
140
Pipe Section, Round Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: From distributor to fuel gauge dash unit 1100 mm. From distributor to fuel gauge dash unit 600 mm. From distributor to fuel gauge dash unit 1150 mm. From distributor to fuel gauge dash unit 1750 mm. From distributor to fuel gauge dash unit 730 mm.
143
Hose Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: Range of delivery for subsequent installation.
$11.50
$11.50
No.
Part # / Description / Price
Price
5
Speedometer Mercedes-Benz
Mercedes-Benz Notes: FROM MODEL YEAR '89
ONLY FOR CANADA
ON VEHICLES WITH ASR/ASD/4-MATIC MODIFY TRACTION WARNING INDICATOR;SEE ALSO ITZ P 010 DD.08/91
ONLY FOR CANADA
ON VEHICLES WITH ASR/ASD/4-MATIC MODIFY TRACTION WARNING INDICATOR;SEE ALSO ITZ P 010 DD.08/91
Description: 260 km.
5
5
Speedometer Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
FROM MODEL YEAR '89
NOT FOR CANADA
ON VEHICLES WITH ASR/ASD/4-MATIC MODIFY TRACTION WARNING INDICATOR;SEE ALSO ITZ P 010 DD.08/91
FROM MODEL YEAR '89
NOT FOR CANADA
ON VEHICLES WITH ASR/ASD/4-MATIC MODIFY TRACTION WARNING INDICATOR;SEE ALSO ITZ P 010 DD.08/91
Description: 160 mph/260 km.
5
5
Speedometer Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
UP TO END OF MODEL YEAR '88
NOT FOR CANADA
UP TO END OF MODEL YEAR '88
NOT FOR CANADA
Description: 160 mph/260 km.
5
5
Speedometer Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
UP TO END OF MODEL YEAR '88
ONLY FOR CANADA
UP TO END OF MODEL YEAR '88
ONLY FOR CANADA
Description: 260 km.
35
62
Socket Mercedes-Benz
Mercedes-Benz Description: Lighting of gear indicator. Lamp control. Tell-tale lamp airbag. Windshield-washer-fluid control. Shift gate illumination. Bipolar. Tell-tale lamp abs/asr. Pre-glow indicator. Tell-tale lamp 4-matic. (oxygen sensor exchange indicator).
80
83
Ledge Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Only used with acceleration skid control (asr),right.
No.
Part # / Description / Price
Price
5
Speedometer Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
ON VEHICLES WITH ASR/ASD/4-MATIC MODIFY TRACTION WARNING INDICATOR;SEE ALSO ITZ P 010 DD.08/91
ON VEHICLES WITH ASR/ASD/4-MATIC MODIFY TRACTION WARNING INDICATOR;SEE ALSO ITZ P 010 DD.08/91
Description: 240 km.
5
5
5
Speedometer Mercedes-Benz
Mercedes-Benz Notes: ON VEHICLES WITH ASR/ASD/4-MATIC MODIFY TRACTION WARNING INDICATOR;SEE ALSO ITZ P 010 DD.08/91
Description: 240 km.
86
89
Ledge Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Only used with abs,airbag and asr, right.
92
95
Ledge Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
FOR JAPAN ONLY
FOR JAPAN ONLY
Description: Right. Only with anti-lock braking system.
No.
Part # / Description / Price
Price
89
Ledge Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Only with anti-lock braking system. Right.
92
Ledge Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Only wi/anti-lock braking system and air bag. Only used with airbag;right.
98
