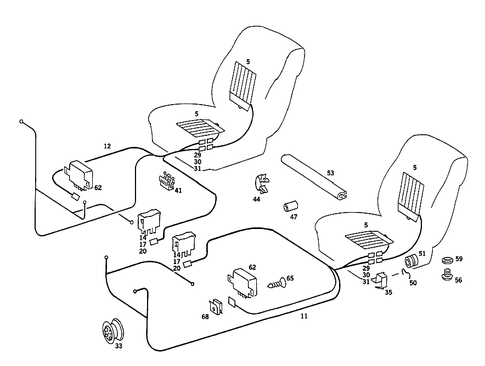

Seat Heating for 1986 Mercedes-Benz 190 E
No.
Part # / Description / Price
Price
N/A
Receptacle Housing
Mercedes-Benz
Mercedes-Benz Description: Mode indicator switch anti-theft alarm system. Seat heater switch.
5
Heater Pad Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR SPORTS SEAT
Description: Front seat backrest. Cover with cross stripes. Used with fabric & leather trim.
5
Heater Pad Mercedes-Benz
Mercedes-Benz Notes: ONLY FOR SPORTS SEAT
Description: Front seat cushion. Cover with cross stripes. Used with fabric & leather trim.
14
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Description: Compressor switch. Electric window regulator switch. Lower part. Seat heater switch. 6-pole. Circulating air switch. 4-pole. Level switch. 7-pole.
$4.90
$4.90
20
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
$2.70
$2.70
20
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
$3.40
$3.40
30
Cap Mercedes-Benz
Mercedes-Benz Description: Back-up lamp cable. To 007 545 00 28, 015 545 49 28. To 006 545 78 28. Fuel gauge sender unit. 4-pole to 015 545 49 28. Quadruple to 009 545 52 28. To 015 545 49 2,. Turn signal and side marker lamps left. To 009 545 52 28 (asd).
$5.00
$5.00
35
Holder Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
FRONT SEAT LESS HEIGHT ADJUSTMENT
NOT FOR U.S.A.
FRONT SEAT LESS HEIGHT ADJUSTMENT
NOT FOR U.S.A.
Description: Airbag plug to seat adjuster on the right. Less height adjustment. Electric pad plug-connection.
35
Holder Mercedes-Benz
Mercedes-Benz Description: Airbag plug to seat adjuster on the right. With height adjustment. Electric pad plug-connection.
47
Protective Hose Mercedes-Benz
Mercedes-Benz Description: Brake cable to rear floor. Electric cable to front seat cushion. For purge line.
50
Clamp Mercedes-Benz
Mercedes-Benz Description: Cover to pad. Used with imitation leather trim. Electric cable to front seat cushion. For support at spring core. Pad to spring core;used with fabric trim. (pads to spring cores).
$2.40
$2.40
51
Feed-Through Grommet Mercedes-Benz
Mercedes-Benz Description: Electric cable thru backrest frame. Electric cable to front seat cushion. Engine hood release cable thru fire wall. For main cable harness at front wall. On bracing,left. For main cable harness through front wall. Cable to alternator see fig. No.: 41.
$2.70
$2.70
53
53
Edge Guard Mercedes-Benz
Mercedes-Benz Description: Protection against scoring 25 mm. 330mm. At bracket. Bracket to c-pillar. At cushion frame. From radiator to expansion tank. Electric cable to seat cushion and to height adjustment 170mm. 100 mm.
59
Tarpaulin Eyelet Mercedes-Benz
Mercedes-Benz Description: Electric cable. Front seat mechanically adjustable. Autotelephone. Head restraint.
65
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Front fender & front central panelling to radiator support console. Seat heater control to front floor bracing. Panelling to rear pillar. Bracket mounting.
